7T69RB 7T69RB 12.6 35 13 21 110 8 2 4.5 9 FA PDF Download
(704 KB)
7T84RB 7T84RB 6.3 22 4.5 17 110 7 0.8 1.5 3.8 FA PDF Download
(725 KB)
7T85RB 7T85RB 6.3 35 5 21 110 8 1 2.5 5.1 FA PDF Download
(1012 KB)
E3062E E3062E 6.3 32 6.3 25 70 7.5 0.75 1.5 3.4 FA PDF Download
(685 KB)
8T20B 8T20B 12 40 11 21 45 12 2.5 10 18 W PDF Download
(623 KB)
8T20RB 8T20RB 12 40 11 21 45 12 2.5 10 16 FA PDF Download
(821 KB)
8T30A 8T30A 12 40 6.6 80 30 12 2 6 11 W PDF Download
(657 KB)
8T30RA 8T30RA 12 40 6.6 80 30 12 2 6 11 FA PDF Download
(954 KB)
8T64B 8T64B 12 40 8 20 45 12 2 10 13 W PDF Download
(629 KB)
8T64RB 8T64RB 12 40 8 20 45 12 2 6 13 FA PDF Download
(823 KB)
8T69JB 8T69JB 12.6 35 12 21 110 8 2 6 9 W PDF Download
(666 KB)
8T85RB 8T85RB 12 40 11 21 40 12 2.5 10 17.5 FA PDF Download
(910 KB)
E3069 E3069 12.6 35 13 21 110 8 2.2 5 11 FA PDF Download
(710 KB)
E3130 E3130 12.6 45 17 21 110 8 2.5 6 13 FA PDF Download
(699 KB)
E3185 E3185 6.3 30 6.5 25 110 7.5 0.8 1.5 4.5 FA PDF Download
(626 KB)

[Notes]

  1. FA : Forced Air Cooling W : Water Cooling

Microwave Tubes Triodes

Triodes <Plate Loss : 10kW - less than 100kW> Lineup Table
8T25RA 8T25RA 8 110 24 20 40 14 4.5 15 31 FA PDF Download
(670 KB)
8T25 8T25 8 110 24 20 40 14 4.5 20 31 W PDF Download
(683 KB)
8T61A 8T61A 8 280 30 20 40 14 8.5 35 57 W PDF Download
(624 KB)
8T72B 8T72B 8 180 16 20 40 14 6.5 25 40 W PDF Download
(690 KB)
8T85B 8T85B 12 40 11 21 45 12 3 13 22 W PDF Download
(686 KB)
8T87B 8T87B 8 180 16 20 40 14 5 30 42 W PDF Download
(665 KB)
8T87RB 8T87RB 8 180 16 20 40 14 5 20 35 FA PDF Download
(672 KB)
9T64B 9T64B 12 320 70 30 25 15 15 75 137 W PDF Download
(632 KB)
9T71C 9T71C 11 285 38 30 25 17 13 75 130 W PDF Download
(661 KB)
9T94A 9T94A 13 320 70 30 25 16 16 80 170 W PDF Download
(655 KB)
E3116 E3116 8 280 30 20 40 14 8.5 25 57 FA PDF Download
(1 MB)
E3132 E3132 8 280 33 20 45 14 8.5 30 60 W PDF Download
(583 KB)



[Notes]

  1. FA : Forced Air Cooling W : Water Cooling

Microwave Tubes Triodes

Triodes <Plate Loss: Over 100kW> Lineup Table
9T38A/
LD961

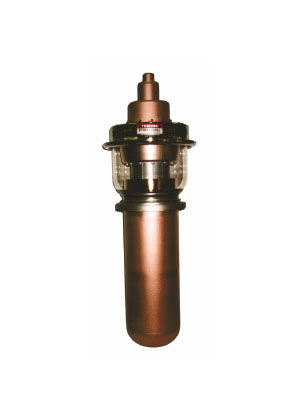

9T38A/LD961 18.3 315 90 40 2 15 20 120 240 W PDF Download
(672 KB)
- 9T40** 18 315 80 40 2 15 20 150 240 V -
- 9T83** 18 315 80 40 2 15 20 150 240 V -
E3050/
9T75

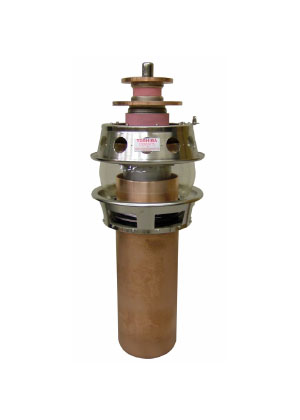

E3050/9T75 17.5 470 130 30 2 15 40 250 450 W PDF Download
(596 KB)

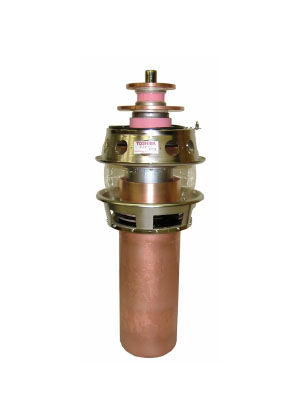

E3085 E3085 15.8 -
18
450 130 30 2 15 40 250 320 W PDF Download
(616 KB)
- E3109** 18 315 80 40 2 15 20 150 240 V -



[Notes]

  1. Type**: For maintenance use only
  2. W : Water Cooling V : Vapor Cooling
